DBMA - Installation and Configuration

For all DbMail versions

This program is distributed in the hope it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. This package and updates are available at /

SpiderMonkey



Options
Search

FastTrack Installation and Configuration Help for Unix

Three Quick Steps for the Experienced

(FreeBSD model, change namespaces to suit your OS)

1) Apply Package

Unpack and install DBMA
# cd /usr/local/www
# tar xvf DBMA_SQL_V2.tar
# chown -R www:www /usr/local/www/dbmailadministrator
# chmod 777 /usr/local/www/dbmailadministrator
# chmod 755 /usr/local/www/dbmailadministrator/*.cgi

2) Update your Perl Modules

# perl -MCPAN -e shell
CPAN> install Digest::MD5
CPAN> install Bundle::libnet
CPAN> install DBI
CPAN> install DBD::Pg or DBD::mysql # whichever you are using, MySQL or PostGreSQL

3) Configure your Apache Server

<Directory "/usr/local/www/dbmailadministrator"> # change for your system
 AllowOverride None
 Options ExecCGI MultiViews
 Order allow,deny
 Allow from all
 AuthUserFile /usr/local/www/dbmailadministrator/.htpasswd # change for your system
 AuthGroupFile "www"
 AuthType Basic
 AuthName "Administration Only.  Enter username and password."
 require valid-user
 order allow,deny
</Directory>
# apachectl graceful
http://localhost/dbmailadministrator/DBMA.cgi
Configure to your database setup
Set options to your liking
DONE

UpGrading to a more Recent Version of DBMA?

Update Script Preserves all Configs

The "update.pl" script included in the tarball will fetch and install an upgrade of DBMA while preserving all existing configurations. This script uses "wget" so you must have "wget" installed. simply type perl update.pl in the dbmailadministrator/ directory.

Manual Updates

Untar the tarball (tar -xvf) from one level above your dbmailadministrator folder, overwriting everything; or to preserve your configuration:
from inside "../dbmailadministrator" do this:
> cp *.DB ../
> cd ../
> tar -xvf DBMA_SQL_V2.tar
> mv *.DB dbmailadministrator/
> chown -R HTTPD_user:HTTPD_Group ~/dbmailadministrator/*

New at this? Just Starting?

Installation

Platform notes. DBMA was built on Unix servers and tested and tuned on several Windows variants. You can fully administer your DbMail IMAP / POP3 system using DBMA on a Win32 host (NT4Server, W2kServer, WinServer-2003).

On either Unix or Windows, DBMA will start up instantly and fly up a configuration window or just login into the database if the default configurations match yours.

If you are running Windows Server 2003 with IIS6, make sure that your CGI is turned on for the dbmailadministrator directory. Use PerlIS.dll instead of the executeable (Perl.exe) and you won't even need to alter the shebang line.

Make certain that the *.DB files are writeable by the account the server runs as (IUSR_hostname). The same applies to Unix systems and their corresponding HTTPD user and group.

Be certain your PERL is up to speed by installing the needed modules. Configure everything correctly and there's nothing you can't do from a Windows box that can be done from a Unix host. DBMA has been tested on Solaris 8/9, Linux, FreeBSD, NT4-IIS4/Apache, NT5-Apache, NT5.2-IIS6/Apache and then some.


Web Server and Perl Modules

You need a Web Server (i.e.: Apache) and PERL installed with the DBI and appropriate DBD modules. (See below how to use "perl dbi-test.pl" to learn what DBI capabilities are installed on your system. Also some tutorial is available on how to modify your Apache configuration to run a secure DBMailAdministrator at DBMA Security
The required PERL modules are:
• DBI and the DBD module for your database (i.e.: DBD::mysql or DBD::Pg)
• NET::SMTP (part of CPAN's Bundle::libnet)

For the best help available on the subject of installing PERL modules, visit CPAN

Installing PERL Modules

Install modules with CPAN like this:
> perl -MCPAN -e shell
> install Bundle::libnet
> install DBI
> install DBD::Pg or DBD::mysql


Mechanics of Installing DBMailAdministrator (DBMA)

1) Untar (tar xvf DBMA_SQL_V2.tar) the tarball
from HTTPD document root or from your cgi-bin, as you wish.
example: /usr/local/www/dbmailadministrator
/usr/local/www/cgi-bin/dbmailadministrator

download tarball to /usr/local/www/
cd /usr/local/www/
tar -xvf DBMA_SQL_V2.tar

2) chown files to your HTTPD user:group and chmod 755 *.cgi
i.e.: chown -R www:www ~/dbmailadministrator/*

3) With the sole exception of 'hard-coding' a "RESTRICTGroupID"
mode (see below), all configuration is done from the GUI.

4) Point your browser to /dbmailadministrator/

5) i) If the programme fails to start, check that the shebang
line (#!c:/perl/bin/perl.exe) in DBMA.cgi points to your PERL and that
you have the necesary modules installed. (See top of README.)

ii) chown files to your HTTPD user:group and chmod 755 *.cgi
(if you are very lucky the tarball's defaults may be fine.)

6) make certain all files and directories are readable and writeable
by the httpd user:group

8) This package includes a maillog search feature for trouble
shooting. dbma_logsearch.cgi doesn't need configuration
as it will look for your logs or you can simply enter the
location from the user interface. Make certain your maillog
is readable by the HTTPD's user:group. Remember that Logs
are rotated by crontab so permissions may need updating.

9) DO NOT make this tool available to Public web access!

Performance:

  1. DBMA v2.4.x + is built within the rigid standards of Mod_Perl 2.02+ and runs fastest in ModPerl (any), but is entirely suited to run as a Common Gateway Interface (CGI) on any platform.
  2. Cache your SQL queries for improved performance of your mail system. The example below assumes you have only a modest amount of memory available. Please read your SQL RDBMS manual for complete details.
  3. MySQL my.cnf (my.ini on win32) example for query cache.
    ../
    query_cache_limit=2M
    query_cache_size=64M
    query_cache_type=1
    /..

DBMA MTA Administration

DBMA provides a number of tools for configuring and managing your Mail Transfer Agent from the GUI. This is accomplished using special tables added to your mail database which, once your MTA is correctly configured, replaces flat text files and provides a range of advantages nonetheleast of which is speed and convenience.

  1. Destination Domains: are the domains for which your MTA will receive mail
  2. Mail Transports, per-domain: configures unique routings to spamD, AV, DbMail SMTP or other filtering and policy daemons.
  3. Access control provides a method of rapidly creating primary white and black lists or for fine-tuning what specialized configuration you may already have.
  4. Read MTA HELP for more information.
Consider with care the location of your DBMA installation. It must have only authenticated use by only the assigned administrators. Read the security notes for some ideas.

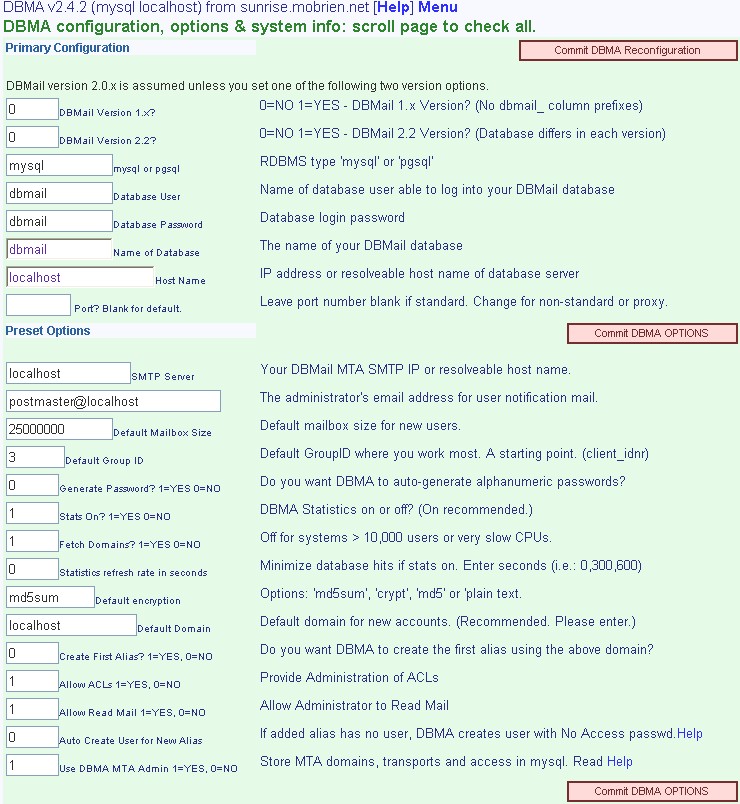

DBMA configuration is now done from the Configuration Window which should open the first time you point your browser to /dbmailadministrator/DBMA.cgi

Troubleshooting?

When something doesn't work right off the bat, we know it can be frustrating. Feel better now. Your problem is not serious, particularly if you already have DbMail.org's IMAP and POP3 daemons up and running well. If you follow the installation procedure in the DBMA README which came with your DBMA package, DBMA will work instantly unless:
  • You are locked out. (Please see security notes for Help with Passwords. Meanwhile the default username is dbmail and the password is dbmail. Generate your own new password NOW. Use the following command adjusted to the location of htpasswd on your system:
    > /usr/local/bin/htpasswd -cb .htpasswd user secret)
  • You made an error in your typing of config information. (Proof read again please and check that your config is correct.)
  • Your host cannot resolve the SQL server name you specified. (Change to an IP number or fix your hosts and/or DNS zone files)
  • SQL User Name rejected. Perhaps the limited priviledges user name and password you are using for your database has only localhost authority on the database server. (Change the user privs on the database to include the host you are running DBMA from or try a different user.)

Check your PERL

If you do not know which PERL modules are installed on your system, this package contains a console tool to answer that question for you if you are unable to start DBMA:
Open a shell to your DBMA installation and enter the command "perl dbi-test.pl"
This tool will list in the console display all the database types which DBI can connect to. Look for yours which will be either "MySQL" or "Pg". If you don't have the one you are looking for open "perl -MCPAN -e shell" and install DBD::mysql or install DBD::Pg. If you do not have the CPAN module installed or if you need more help using it, visit http://www.cpan.org/modules/INSTALL.html

If DBMA starts but cannot connect, it will tell you most everything you need to know to get you connected and working on Administration of your DbMail database.

DBMA Troubleshooting Summary

1) Are you using PERL 5.6 or better with DBI and DBD installed for your database?
• CGI::Carp (should be in your PERL already)
• NET::SMTP (part of libnet which should be in your PERL)
• Digest::MD5 (should be in your PERL already)
2) Is your web space script-enabled (i.e.: ExecCGI) (read DBMA_security.htm)?
3) Have you correctly configured DBMA with your Database details?
4) Have you correctly set the correct database type?
5) Have you correctly set the versioning for DbMail?
6) Do you have a database client installed?

Privacy Considerations

In the event you observe the mail contents addressed to a real person's (not referring to 'webmaster', 'abuse', 'sales', etc.), you may not dislose the content of that message to any person. Period. Throughout the world it is most often a criminal offence to do the contrary. DbMailAdministrator (DBMA) provides methods for searching mail headers and message blocks for administrative troubleshooting only. DBMA's message block displays are not content-friendly but ASCII-forced with emphasis on routing and embedded header-fields tracing the internet 'hops' the message travels. An example of appropriate use would be finding and UNdeleting a critical message a user inadvertantly deleted; troubleshooting headers when a delivery breaks; evaluating anti-spam/virus software deployments; providing help-phone assistance to users in the identification or removal of SPAM, 'message-jams', viruses; and so on. Use the search headers option wherever possible for speed, eficiency and privacy. Anything you read, keep it to yourself. If something you feel is alarming comes into view, refer the message ID to an immediate supervisor or consult with your employer's privacy/security authority.

Some Pointers for Using DBMA

Please change your default password (dbmail:dbmail and dbma:dbma for Win32) as soon as possible. See security for more details. Password protection should be enabled in your HTTP Daemon configuration file (i.e.: httpd.conf).

DbMail Administrator (DBMA) GUI interface tunes into the amazing flexibility of the DbMail.org mail system concept. You'll love this, as managing large mail account groups becomes a treat. DbMail is so flexible it might be possible to write a book about all the permeatations one can create. The DBMA administrative GUI opens the door. What follows is no book. If you have any questions about what is or is not covered below, please ask them.

DBMA enables an Administrator to 'hard-code' DBMA to restrict administrative access to a single DbMail "Group" (client_idnr).

This is ideal for Help Desk or Level One Support situations where you want personnel to perform mail user management on a select group of DbMail accounts without providing full DbMail database view or access.

You can also use DBMA (RESTRICTGroupID mode) on a end-to-end secure and authenticated Web resource (authenticated SSL) with which your external customers' Administrator or internal/remote departments' Administrator could manage their own DbMail accounts. In the case where there are only single known users of the resource you could easily use a self-issued High Grade Encryption (AES-256 256-bit) server certificate if you don't have nor want the cost of a 'store-bought' Server Cert (i.e. Thawte, VeriSign, SSL, etc.). (http://www.ssl.com/ now offers an SSL128SCG2.5 single-domain Cert for under $100. USD).

Multiple instances of DBMA can be used to Administer multiple "DbMail Groups/Clients" by designated personnel without any overlap and with only a restricted view or access to a single group (client_idnr) of mail accounts for each designated "Group/Client" Administrator.

To implement this mode, DBMA is first configured like normal in the configurations GUI. Then "root" opens the main script (DBMA.cgi) in a text editor; a comment hash mark is removed; and the client_idnr number for the group to which DBMA will be restricted is entered. (Detailed instructions are in the top of the script.) At this point no further GUI access is available to the configurations window nor global list/add/delete/etc. functions. Administration rights exist only for the single group you enable. The README in the tarball has further info.

  • RESTRICTGroupID mode (see http://dbma.mobrien.com/DBMA-FAQ.htm for full details)
  • - removes access to all Global Functions
  • - removes access to DBMA Configuration GUI
  • - limits administration access to a single group
  • - prevents duplicate user accounts across mail Groups
  • - returns a notice and denies access when the group
  • administrator's search returns a user outside his/her assigned group

In the (default) unrestricted configuration, DBMA enables full access to your entire DbMail system database for managing users, finding mail, etc. and is relatively unchanged.

  1. Scalability. Like DbMail, DBMA is vastly scalable. Millions of users can be accomodated depending on the scope of your database servers (or cluster). You might notice some terms of reference in DBMA (GUI names) differ slightly from the table and field names used in the DbMail database. DBMA is a management tool as well as a customer support tool. DBMA favours the use of 'friendly' terminology which fits the most likely usage by front line Level One Support people and by the 'machine room' mail team. "Group" refers to the 'dbmail_users' field 'clientid', for example. In the case of an ISP, each user is a client. You might consider organizing your clients/users into geographic groups or net segment groups or whatever you like, to keep the total number of users broken up into manageable lots of up to 1000-1500 accounts per group. With just 999 groups you can manage as many email accounts as some countries have internet users. Both DbMail and the DBMA GUI are highly scalable.
  2. By using simple "radio check buttons" and pressing "Go" DBMA lets you add or delete users, aliases, forwards, notifications, check mail limits, monitor IMAP mailboxes, and more as well as show and modify single users or display a list of all existing users in any group or all groups displaying all information including current mail stats.
  3. Deleting the user removes the account as well as all aliases and auto notifications for that user.Heed the 'Alert' popup asking "Are you sure you want to do this?" Once deleted, all aliases, forwards, mailboxes and mail associated with the deleted user are GONE for good.
  4. Message Management Problems with undeleted messages in DbMail? With the preponderance of email clients and perhaps after numerous rejigging of the DbMail database through various upgrades, you may find that messages marked by a user for deletion are not having their status reset. Look for changes in the MAIN MENU statistics column: "Number of deletes pending" DBMA (since V2.1.2) will accomplish this with a single check "Update delete status" box and "Go".
  5. Find the orphaned messages DBMA is a good fixer.

    This 'Update Delete Status function' runs a scan of the database looking for three basic problems.
    1. messages marked delete by the client but status is still 000;
    2. messages having no 'owner mailbox' and
    3. messages unattached to a user.

    These are three issues which DBMA users have emailed me about. From DBMA user feedback I deduce this is sometimes caused by mucking around in the datatbase with an editor like MySQLCC, PHPMyAdmin or phpPgAdmin. There may also be issues with some patched/migrated database schemas; and surely there's the gremlins and quirks.

    If DBMA finds some orphaned messages DBMA will, with gentle grace, set their dbmail_messages.status to a mere 001 and their deleted_flag to a certain "1" preparing them for the ultimacy of the maintenance cleanup.

    Look at the "Number of deletes pending:" column of the DBMA statistics (Main menu) to observe any changes after doing "Update Delete Status".

    Why status 001?
    You are the real 'administrator' and must be afforded a chance to review what you have done.

    If you don't like '001', go nuts, repeat the action and they will all be set to '003', the final bell. The next crontab 'dbmail-util -d' removes them from the database. (You may someday benefit from this two-step flexibility.)

    NOTE: The Update delete status function is not available to "Group Administrators" under the RESTRICTGroupID constrict.

  6. Mail search, delete or undelete. Mail search is available from any users mail box and the search will be conducted within that Mailbox. Delete sets the status flag to 003 so it is wiped out on the next maintenance pass. All flags are visible in any mail box so an erroneously marked (for delete) can be spotted quickly. Individual mail can be undeleted or deleted, all mail in any mail box can be deleted or undeleted.
  7. Remove separate aliases by User ID (even if the user no longer exists) or by complete alias. Some orphaned rows may exist in your database between dbmail-utils / dbmail-maintenance crontab runs. More often than not this is an admin-user error. Hush. DBMA can help you monitor and oust straggler aliases. Just type the full alias and press "Delete Alias" and presto it's gone. In the alternative you can type the UserID and press "Delete All Aliases" and zap, they are all gone.
  8. Forwards including external address forwards like [email protected] ==> [email protected] are accomplished by checking 'Add Forwards' and pressing the "SQL Tool" button from the Admin page. You will get another GUI window which is self-explanatory on adding email internal and external forwards. You can also list all the forwards and delete any which need to go.
  9. I already have a "Bob" as user. Let's face it, public email addresses uniquely identify each person on planet earth. As a mail administrator or postmaster you already realize that folks take their email address and their email seriously and personally. Very much so. Keeping the mail running and folks happy is your aim but you will encounter many heretofore inconceivable complaints or requests from users. It's nice to know you are ready for most anything.
    So, the new user wants the name "bob" in his email address, empatically. You already have a "bob" (or whatever the request may be) at another virtual domain and this new user who wants to be "bob" won't take no for an answer. No problem. Use DBMA with "Add User" checked to open an "(Add) User" window. Type a uniqe name like "boblastname" for the "User Name", enter the new Bob's password and "Client (Group) ID" then enter the email address as "[email protected]". Bob must login with account name "boblastname" but his email address is "[email protected]". All mail for "[email protected]" will go to the mailbox of "boblastname" and the other "Bob" is unscathed by all this.. You can have as many "bob's @ different_domains.tld" as you like.
  10. Encryption. Many people will find that plain text passwords are sufficient for email user accounts. If that is not true for you, DBMA will encrypt your passwords compatible with dbmail. Choose from md5-hash, md5sum or crypt.
  11. Auto Notify is accomplished by knowing the UserID number of the user you want to cause a notification. Enter the UserID number and the full email address of the mail box you want a notification sent to. It will work like a charm.
  12. A simple way to add an alias is to call up the user in a manner of your choosing and then use the "Modify..." button. In the window which appears, without changing any of the main entries, add an alias to the "alias" text window at the bottom and press "Update". A similar window will popup again showing the change. You can repeat the above over again to add more aliases very quickly.
  13. Search for users can be accomplished using the email address, the user name or the user ID number. Your most unequivocal method uses the ID number.
  14. You can view all users in all groups by selecting "List all users all group" and pressing the "Go!" button, but if you have 100 groups each with a thousand users, you won't be seeing the list for quite some time. To be more selective, in the top row of functions, enter the group (ClientID) number and press either the "Users" or "Aliases" buttons. An alphabetical list will appear. Click the name of the user or alias you wish to modify and a data page for that user will open. If it proves true that this is the user you seek, press the "Modify User" button and make your changes, updates or whatever.
  15. List Aliases GUI helps you manage scores of information and functions; forwards or aliased accounts and more. You can list every alias but if the numbers are high you should limit the display to under 1500 users. The ideal method is to list aliases by groups. Mail forwarders can also be listed separately. Each alias listing has a link to a data window or a search function. In the case of an external forward you obviously will not find the alias as a user account but in the case where you have [email protected] forwarded to [email protected], the two links will take you to the User Data Window for the two corresponding user accounts. Did you follow that? Each line has two links. The mail for x@x goes to xx@xx. It is possible that the link on the right is an external address. Clicking it will fetch an "account doesn't exist" message. On the other hand, accounts like "noc", "dns", "abuse", "privacy" etc are likely aliased to the addresses of persons or titles. The DBMA Alias List GUI allows you to quickly select which Account window you wish to open, the account with mail forwarded (left link), or the account where the mail goes to (right link).
  16. Distributing your NewsLetter with forwarding. If you are creating forward aliases like "[email protected]" to be forwarded to each and every user at "@ourdomain.tld" you might forget to actually create the account "newsletterfromtheprez", but if you thought "Flubber" had bouncing problems, watch what happens with this scenario when things go wrong. In other words, if you are going to create a "newsletter" alias for mail distribution to various mail account groups, for each "newsletter" forwarder, create a full user account for your "newsletter".
  17. To view the data for a single user, type the user's name or ID number beside the "User Search " button and press that button. From there you can modify or even delete the user.

Don't Allow Public Access To This Tool

DbMail is a very good package of programmes for storing and retrieving mail in a MySQL or PostgreSQL database. DbMail Administrator (DBMA) can help you administer your DbMail user accounts with an HTML GUI you can work with from across the LAN or around the globe (you should VPN or similarly secure connect for the latter). Whatever secure environment you choose to do your enterprise or network management within, using your own privileged user and permission sets, would be a good place to try DbMail Administrator (DBMA).

Listing Users

Each user listing is a link to the user's data page.

List Al users in group or list all users in any group by typing "any"

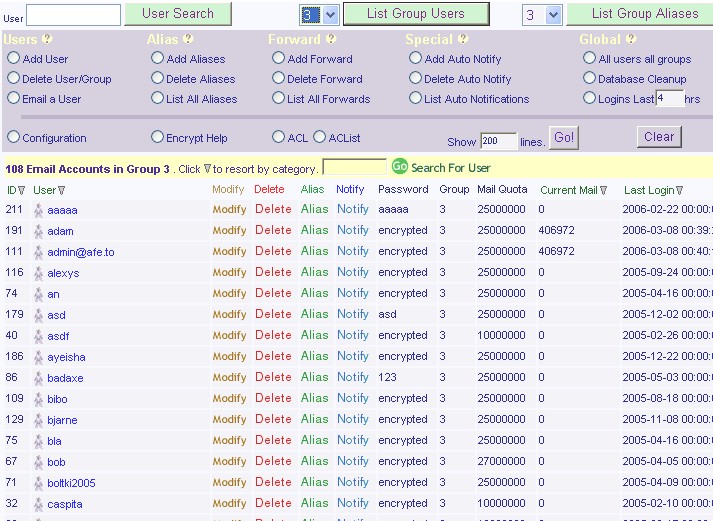

  • In the above User List Window screenshot you would click the user link on the left side to open a user data window.
  • Select "Configurations" for a data page setting out configration and technical specifics about your DBMA installation and your system's, PERL as well as your database.
  • Restrict the number of listings by using the radio check buttons in addition to your function selection.

More About Password Encryption


Please read this.
(Note: Passwords must not be encrypted if you are using SASL for SMTP authentication.) When you are creating or modifying a user account in DBMA you are given the option of encrypting passwords. For obvious security reasons, DBMA will not decrypt them. If a user forgets their password and if you have elected to encrypt passwords in your database, your only option is to issue a new password. This is a 'best practice' in enterprise, corporate or ISP scenarios.

Keep in mind that this discussion of encryption applies only to the password communication between DbMail and its database and how the password is actually stored in the database. The user's handling of their password is in plain text.
Let's put this in perspective with a hypothetical anecdote.
You are sitting at your workstation as a Level One Support person in a corporate environment. Open on your workstation screen is DBMA displaying the Corporate Management group of users: rows of executive mail accounts all with plain text passwords in full view. The CEO walks by and sees his name and password on your screen along with those of the VP Finance, VP Legal, VP Human Resources, Payroll etc.
Like Donald Trump says, "You're fired!".
Storing passwords with encryption is the right choice for most commercial and corporate environments.
Unless you are using one of the many options available for authenticating encrypted user passwords across the internet; on 143 and 110, plain text login passwords are passed across the internet. So also are email messages passed in plain text across the internet. If someone wants to read your emails they certainly don't need your POP3/IMAP login password. But any level of unauthorized access to your database management system's passwords is a potentially serious failure of your system's security.


All of this is fairly common practice. I understand that an SSL version of DbMail is contemplated by some developers for later consideration and possible release. Meanwhile, with great success, many DbMail Admins are using "stunnel" (http://www.stunnel.org/) as an SSL wrapper for DbMail..


The table which follows defines the four options you have in DbMail for storing passwords: cleartext, an 'md5' (hash), 'md5sum', and the Unix 'crypt'. Remember these defining terms should be entered in lower case. DBMA will encrypt your passwords for you. Select from crypt, md5-hash or md5sum in DBMA. These are stored in a manner understood by dbmail's various programmes and the effect is seamless.
dbmail-users syntax encryption_type Actual Password
cleartext "" yourtest
crypt "crypt" sixG/7CU2FOtg
md5-hash "md5" $1$rjN6/GVE$6rPnLX388iJ1Dt7J/LRPf.
md5-digest "md5sum" b22766fada4a17d0f1a67c258a1d93d7
crypt-raw "crypt" whatever hash you enter
md5-hash-raw "md5" whatever hash you enter
md5-digest-raw "md5sum" whatever hash you enter
